Summary

This project implements a distributed, collaborative text editor (similar to a simplified Google Docs or Overleaf) that allows multiple users to concurrently view, edit, and share plain acii-only text documents in real-time.

Technical implementation

To address the core challenge of real-time collaborative editing without locking the document, we utilized a Conflict-free Replicated Data Type (CRDT) model based on fractional indexing: rather than using string indices (e.g., to delete the second character of the document a user issues the { "action": "DELETE", "index": 1 } command), which easily cause merge conflicts - the final state of the document depends on the order of arrival of the requests; every character is assigned a unique, globally ordered identifier. This guarantees the eventual consistency of the operations!

The front-end resolves index collision risks using the jittered fractional indexing library, achieving a collision rate of less than 0.0005% even under concurrent inputs by 100 users.

Distributed architecture

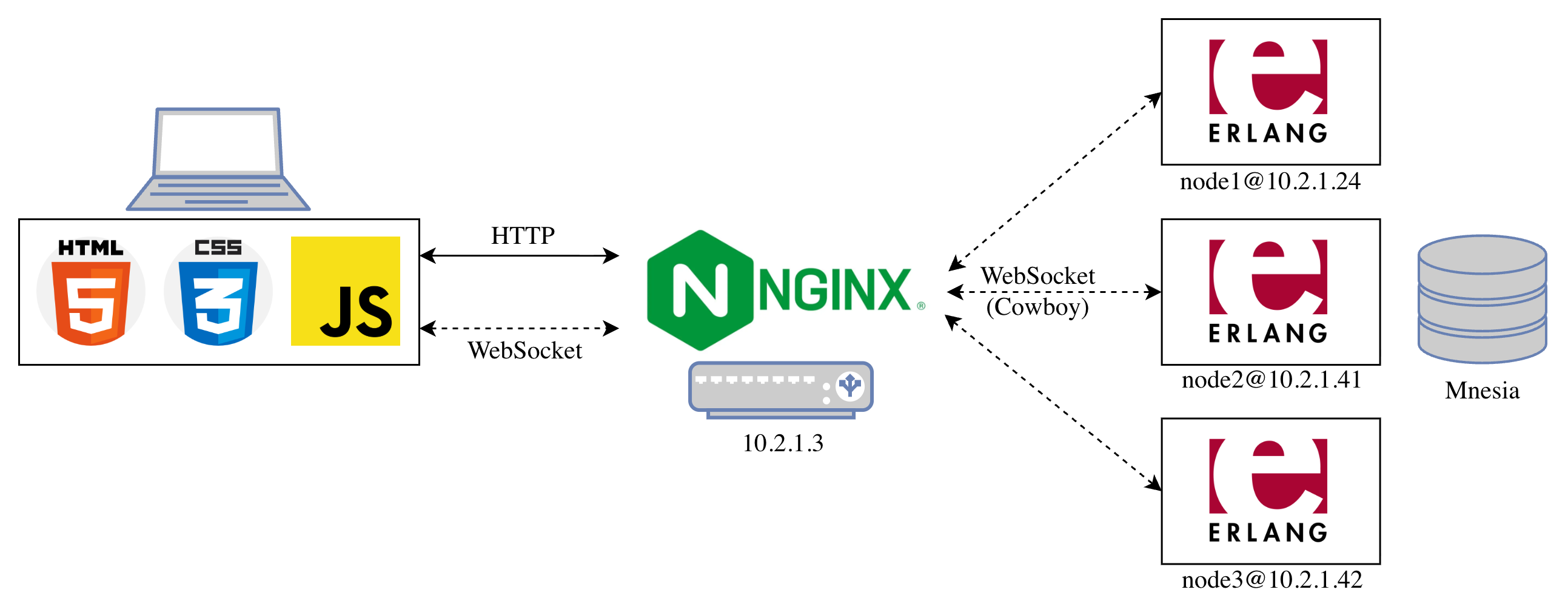

Schema of the software architecture and multi-node cluster configuration

Schema of the software architecture and multi-node cluster configuration

The backend is built as a distributed, fault-tolerant cluster of Erlang nodes running behind an Nginx load balancer.

To persist data, the application embeds the Mnesia database configured with disc_copies to survive reboots. Because writing every single keystroke to disk would cause severe I/O bottlenecks, doc_server acts as an intelligent write-back cache, flushing the in-memory CRDT state to Mnesia only when:

  1. Operation volume threshold: 50 distinct operations (save_every = 50) are accumulated.
  2. Temporal interval: A repeating timer fires, checking if unsaved edits exist.
  3. Session termination: The last active user disconnects, triggering a final dirty_write before the server process exits.

Performance benchmarks

Concurrency limits

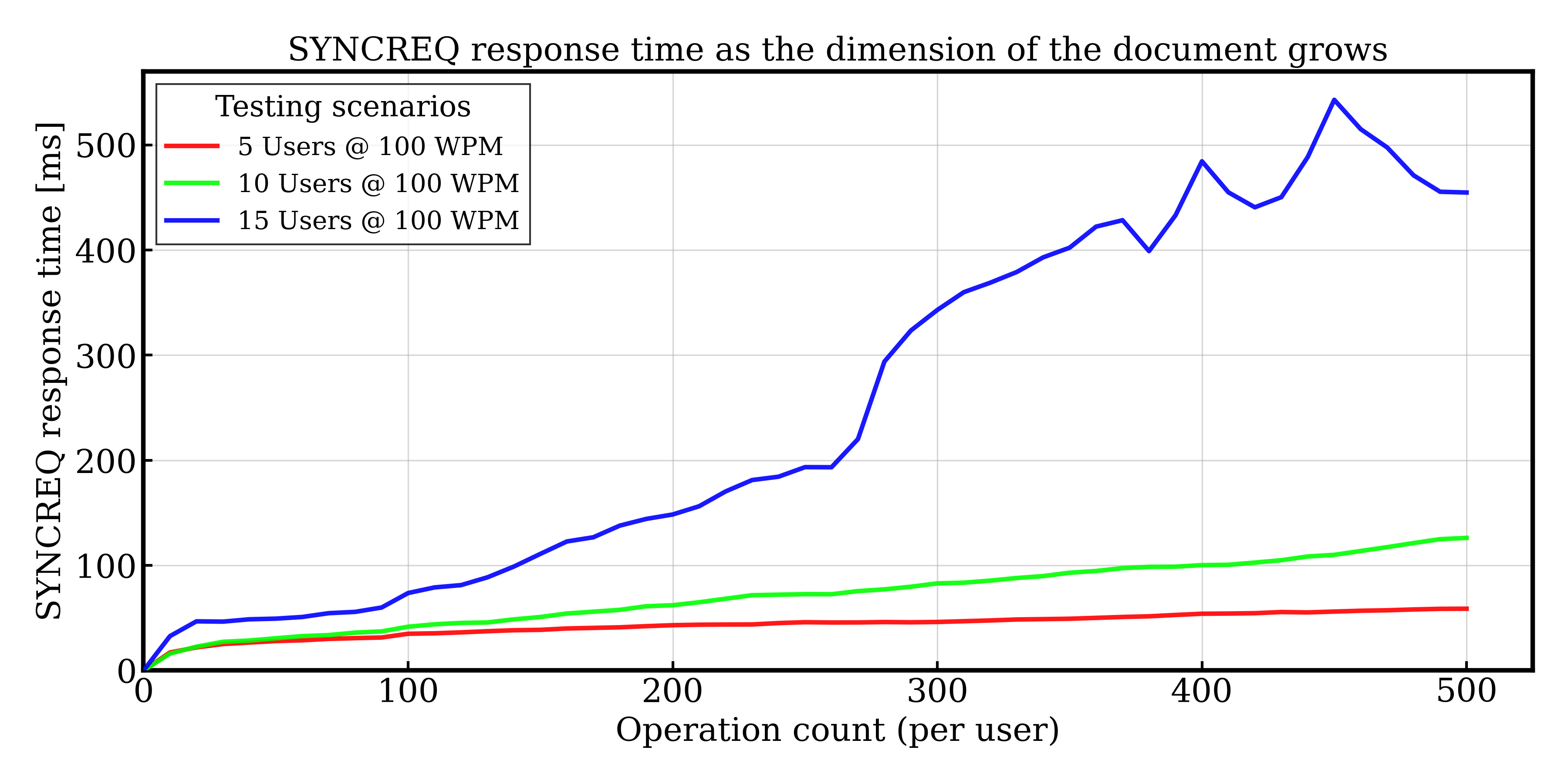

SYNCREQ response times as the document size and number of concurrent users increase

SYNCREQ response times as the document size and number of concurrent users increase

To find the optimal active user limit, we simulated clients typing continuously at 600 edits per minute (roughly 100 WPM):

  • With 5 and 10 concurrent users, response times grow slowly and linearly, remaining well within real-time bounds
  • With 15 concurrent users, performance degrades non-linearly because the broadcast of every keystroke to all clients rapidly fills the Erlang processes’ mailboxes
  • Consequently, we established a limit of 10 active concurrent editors, putting subsequent users into a FIFO waiting queue

Write-back cache tuning

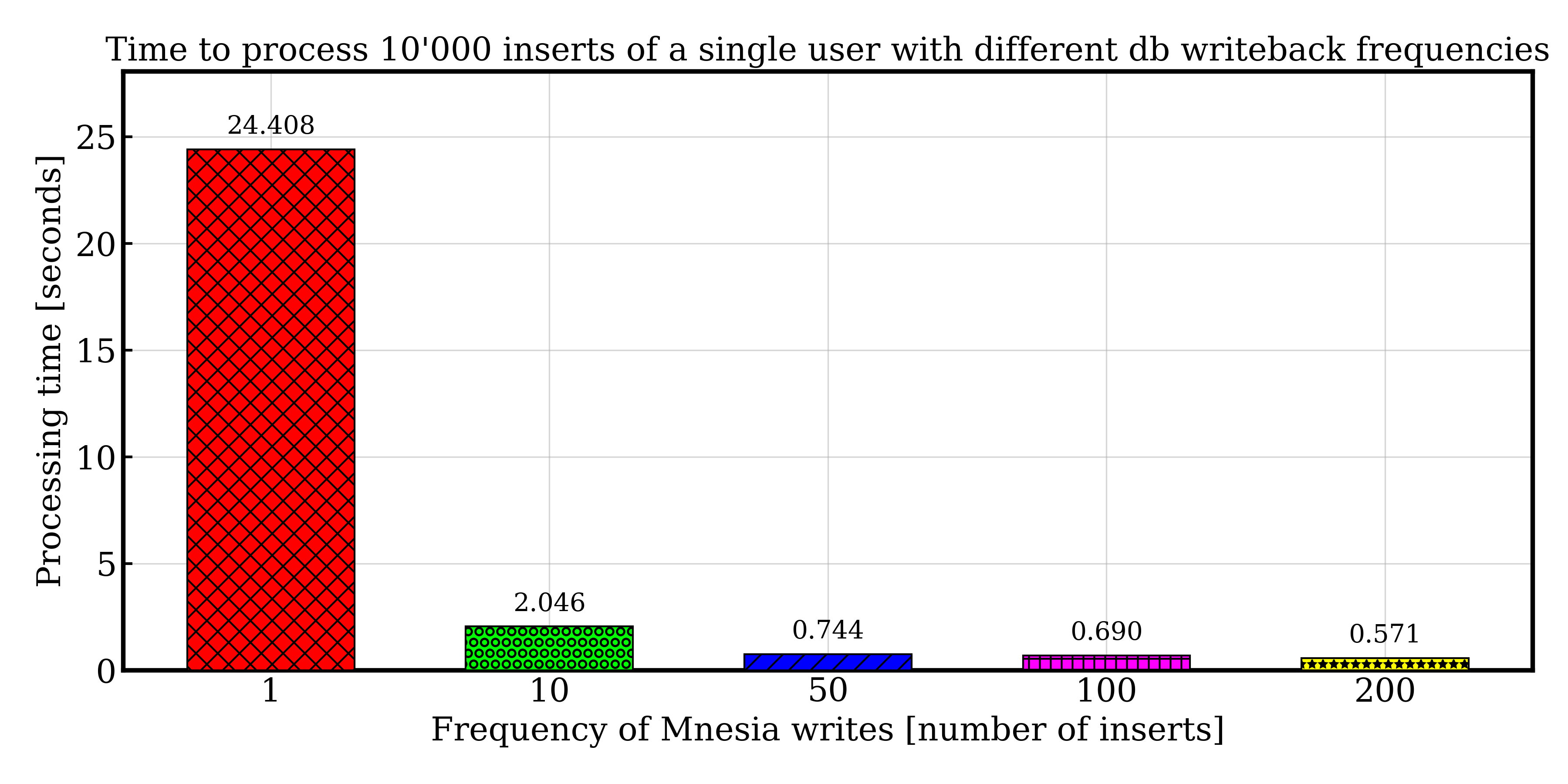

Processing time for 10,000 sequential inserts under different Mnesia write-back frequencies

Processing time for 10,000 sequential inserts under different Mnesia write-back frequencies

We measured the processing time of 10,000 sequential keystrokes under various flush thresholds:

  • Writing to Mnesia on every single keystroke (save_every = 1) takes 24.408 seconds due to severe disk I/O saturation
  • Batching edits drastically improves response times: save_every = 10 drops processing time by over 90% to 2.046 seconds
  • Setting save_every = 50 reduces processing time to 0.744 seconds
  • While larger thresholds (e.g., 100 or 200) offer minor speedups, they dangerously expand the volatility window. Thus, we selected save_every = 50 as the optimal architectural tradeoff
